Pipe Tee branch formula 90° Unequal

Tee type pipe support 90 degree formula

Unequal pipe saddle branch formula 90 degree

Unequal pipe tee branch calculation formula

Unequal pipe tee branch 90 degree 8 center line marking formula

Unequal pipe tee branch 90 degree 16 center line marking formula

How to fabricate unequal pipe  tee branch 90°

पाइपिंग टी ब्रांच फॉर्मूला अनइक्वल

टी टाइप पाइप सपोर्ट फार्मूला

Unequal Pipe Tee branch formula 90° | Tee type pipe support Unequal 90 degree

अनइक्वल पाइप टी ब्रांच फॉर्मूला

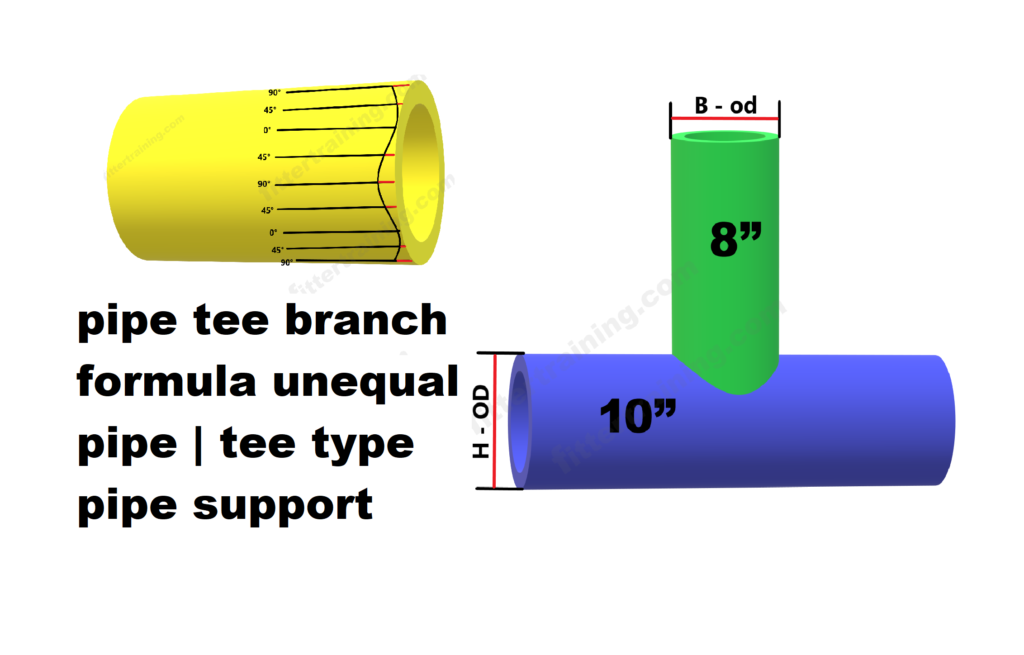

Unequal Pipe Tee Branch Formula

Formula  ( Branch OD × Branch OD )  ÷  ( Haider OD × 4 ) = cut back

Example   8″ × “10

B – for Branch OD 219 mm

H – fore Header OD 273 mm

( 219 × 219 ) ÷ ( 273 × 4 ) = 43.9  mm 90° position cut back

pipe tee branch equal  formula | tee type pipe support

यह 8 सेंटर लाइन में मार्किंग किया गया है

कैलकुलेशन करने के बाद जो कट बैक है वह 90 डिग्री के पोजीशन पर मार्किंग किया जाएगा

जिस तरह यह ड्राइंग बनाया गया है सेम वैसे ही आपको पाइप के ऊपर मार्किंग करना है  दोनों साइड 90 डिग्री रहेगा

90 डिग्री के बगल में 45 डिग्री और उसके बाद जीरो डिग्री दोनों साइड सेम रहेगा

45 डिग्री पोजीशन का कट बैक निकालने का फार्मूला

Sin( 45 ) × 43.9 = 31 mm 45° पोजीशन का कट बैक

This marking has been done in 8 center lines

After calculation, the cut back will be marked at a 90 degree position

Just like this drawing has been made, you have to mark on the pipe in the same way. Both sides will be 90 degrees

Next to 90 degrees, there will be 45 degrees and after that zero degrees, both sides will be same

Formula to calculate the cut back of 45 degree position

Sin( 45 ) × 43.9 = 31 mm 45° position cut back

pipe tee branch equal  formula | tee type pipe support

16 सेंट्रल लाइन में मार्किंग करने का फार्मूला

pipe tee branch equal  formula | tee type pipe support

16 सेंट्रल लाइन में मार्किंग करने का फार्मूला

Formula for marking in 16 central line

Sin( 22.5 ) × 43.9 = 16.7 mm 22.5° position cut back

Sin( 45 ) × 43.9 = 31 mm 45° position cut back

Sin( 67.5 ) × 43.9 = 40 mm 67.5° position cut back

Sin( 90 ) × 43.9 = 43.9 mm 90° position cut back

pipe tee branch equal  formula | tee type pipe support

यह फार्मूला के जरिए पाइप ब्रांच बना सकते हैं

और इसी फार्मूले के जरिए पाइप में टी टाइप का पाइप सपोर्ट बना सकते हैं

This formula can make pipe branch

and through this formula can make T type pipe support in the pipe

यह फर्मूला स्माल बोर में सही काम करता है जैसे 1.5″ से लेकर 10″  तक आप इसके जरिए पाइप ब्रांच या पाइप सपोर्ट बना सकते हैं

बिग बोर में बनाना हो तो उसके लिए आप हमारे वेबसाइट से कट बैक पीडीएफ चार्ट ले सकते हैं

This formula works well in small bore like 1.5″ to 10″ you can make pipe branch or pipe support using this

If you want to make it in big bore then you can get cut back PDF chart from our website

👇👇👇 website link pdf chart download

https://fabricatorguide.com/category/pipe-branch-elbow-dummy-pdf-chart/
