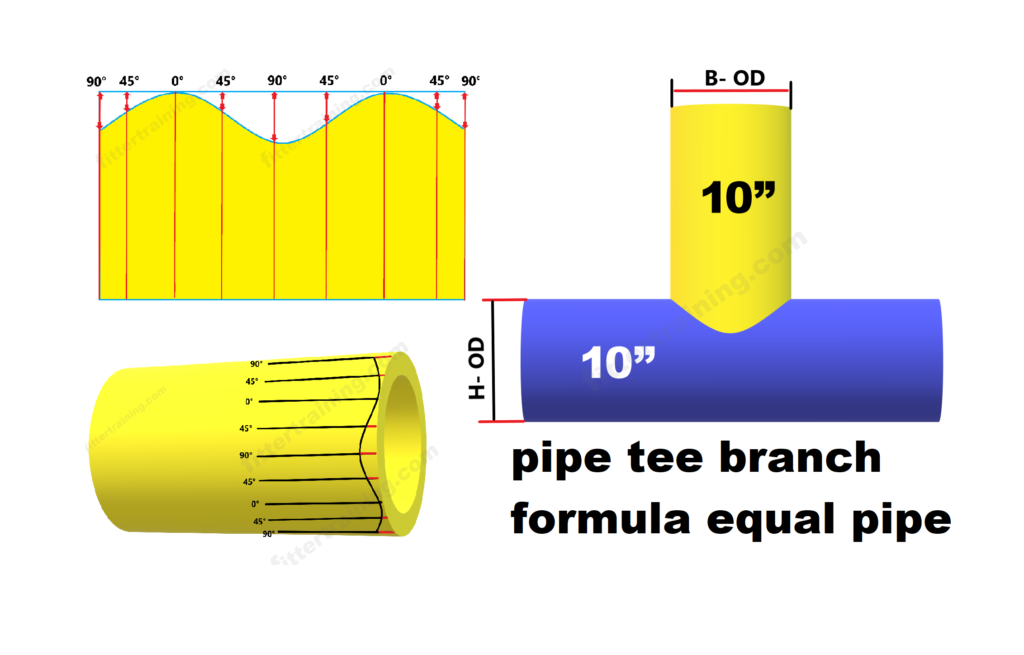

Equal Pipe Tee Branch Formula

Pipe OD × 2 ÷ 5 = 90° position cut back

Example 10″ × 10″

Pipe  OD 273 mm

273 × 2 = 546 ÷ 5 = 109 mm 90° position cut back

pipe tee branch equal  formula | tee type pipe support

यह 8 सेंटर लाइन में मार्किंग किया गया है

कैलकुलेशन करने के बाद जो कट बैक है वह 90 डिग्री के पोजीशन पर मार्किंग किया जाएगा

जिस तरह यह ड्राइंग बनाया गया है सेम वैसे ही आपको पाइप के ऊपर मार्किंग करना है सेंटर में  दोनों साइड 90 डिग्री रहेगा

90 डिग्री के बगल में 45 डिग्री और उसके बाद जीरो डिग्री दोनों  साइड सेम रहेगा

45 डिग्री पोजीशन का कट बैक निकालने का फार्मूला

Sin( 45 ) × 109 = 77 mm 45° पोजीशन का कट बैक

This marking has been done in 8 center lines

After calculation, the cut back will be marked at a 90 degree position

Just like this drawing has been made, you have to mark the pipe in the same way, in the center both sides will be 90 degrees

Next to 90 degrees there will be 45 degrees and after that zero degrees, both sides will be same

Formula to calculate the cut back of 45 degree position

Sin( 45 ) × 109 = 77 mm 45° position cut back

pipe tee branch equal  formula | tee type pipe support

16 सेंट्रल लाइन में मार्किंग करने का फार्मूला

pipe tee branch equal  formula | tee type pipe support

16 सेंट्रल लाइन में मार्किंग करने का फार्मूला

Formula for marking in 16 central line

Sin( 22.5 ) × 109 = 41 mm 22.5° position cut back

Sin( 45 ) × 109 = 77 mm 45° position cut back

Sin( 67.5 ) × 109 = 107 mm 67.5° position cut back

Sin( 90 ) × 109 = 109 mm 90° position cut back

pipe tee branch equal  formula | tee type pipe support

यह फार्मूला के जरिए पाइप ब्रांच भी बना सकते हैं,  और पाइप में टी टाइप का सपोर्ट बना सकते हैं

Using this formula pipe branches can also be created and T type support can be created in the pipe

यह फर्मूला स्माल बार में सही काम करता है जैसे 1.5″ से लेकर 10″  तक आप इसके जरिए पाइप ब्रांच या पाइप सपोर्ट बना सकते हैं

बिग बोर में बनाना हो तो उसके लिए आप हमारे वेबसाइट से कट बैक पीडीएफ चार्ट ले सकते हैं बिल्कुल फ्री है बिग बोर डाया का

This formula works well for small bars like 1.5″ to 10″  you can use it to make a pipe branch or a pipe support

If you want to make in Big Bore then you can take cut back PDF chart from our website for that it is absolutely free of Big Bore Dia.
