how to find structural shed column dimension

how to find degree structural shed column

structural shed fabrication formula

structural fitter fabricator training

how to calculation degree

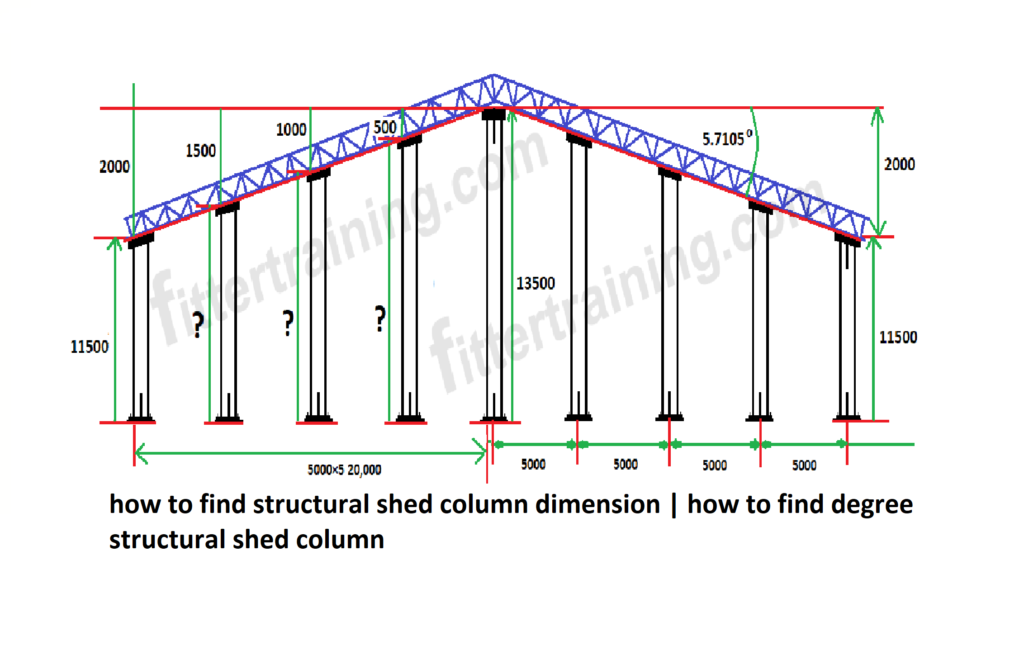

center column dimension 13500

last column dimension 11500

13500 – 11500 = 2000 mm

column to column dimension 5000 × 4 = 20000 mm

tan-1( 2000 ÷ 20000 = 5.7 degree

how to find middle 3 columns dimension

tan( 5.7105 ) × 5000 = 500

tan( 5.7105 ) × 10000 = 1000

tan( 5.7105 ) × 15000 = 1500

tan( 5.7105 ) × 20000 = 2000

13500 –   500 = 13000 mm column 2

13500 – 1000 = 12500 mm column 3

13500 – 1500 = 12000 mm column 4

13500 – 2000 = 11500 mm column 5
