Piping clamp support dimension

Pipe clamp support

How to find radius length of clamp pipe support

How to find bolting aria dimensions clamp pipe support

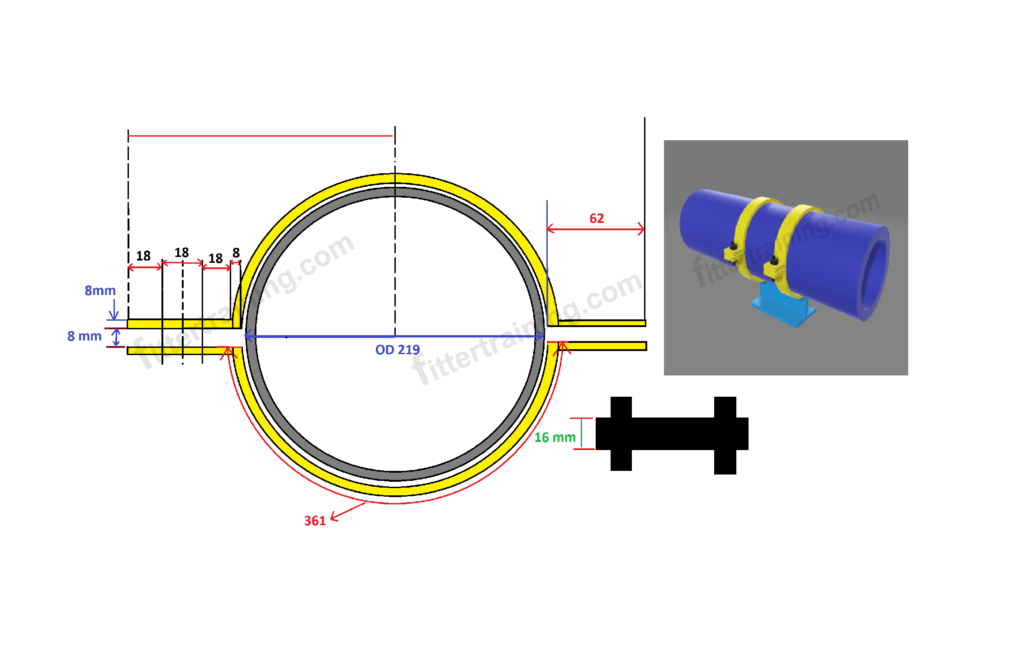

Example

Pipe size 8″ inch OD 219 mm

clamp support plate thickness 8 mm

clamp support bolt size 16 mm

16 + 2 = 18

18 mm hole dimensions and

Hole out side 18 mm and + hole in side 18 mm + hole Dia 18 mm

18+18+18+8 = 62 mm bolting aria dimensions

How to find radius length of clamp pipe support

clamp support plate thickness 8 mm × 2 = 16

Pipe size 8″ inch OD 219 – 16 = 235

clamp support gap 8 mm in bolting aria × 2 = 16 mm

235 × 3.142 = 738 – 16 = 722 ÷ 2 = 361 radius length of clamp support plate

18+18+18 × 2 = 108 + 361 = 469 mm total dimension
