How to fitting any degree nozzle in separater tank | Refinery vessel | stores tank

How to calculation degree of separater tank nozzle

Refinery vessel nozzle rolling fitting calculation

Structural tank nozzle degree fitting formula

How to fitting any degree nozzle in separater tank,  Refinery vessel, stores tank

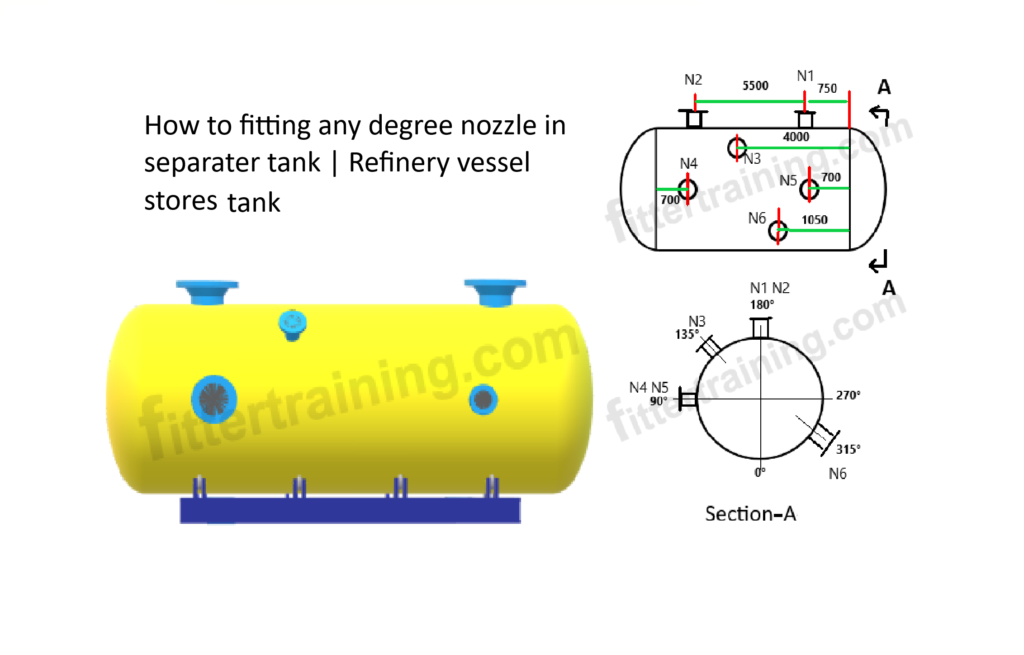

separater tank and Refinery vessel  nozzle dimension drawing

separater tank and Refinery vessel  nozzle degree calculation

Tank OD 2500 mm

OD 2500 × 3.142 = 7855 CF

Tank CF 7855

CF × degree ÷ 360 = mm

7855 × 45 ÷ 360 = 981 mm

7855 × 90 ÷ 360 = 1963 mm

315 – 270 = 45°
